Porosity and density meter
Mecanum’s porosity and density meter is a pycnometer that measures the open porosity and true bulk density of open-cell porous materials. It applies the isothermal pressure/mass method from the scientific literature: by weighing a sample under different pressure levels and applying the ideal gas law, it retrieves the volume of the solid phase, and from it the bulk density and open porosity. Both are key parameters governing the acoustic effectiveness of absorbing materials, which makes the porosity and density meter well suited to end-of-line quality control, supplier validation, and new material development.
Dimensions
Test bench
430 (L) x 370 (W) x 135 (H) mm
Test chamber internal dimensions
111 (∅) x 120 (H) mm
Maximum sample mass
2 kg
Measuring range
Open porosity
0 to 99.9 % (the accuracy depends on the type of gas used, as well as the available volume of material)
Bulk density
From 0.1 kg/m³
Measuring pressure
95 psi (655 kPa)
Measured properties
Open porosity
True bulk density (kg/m³)

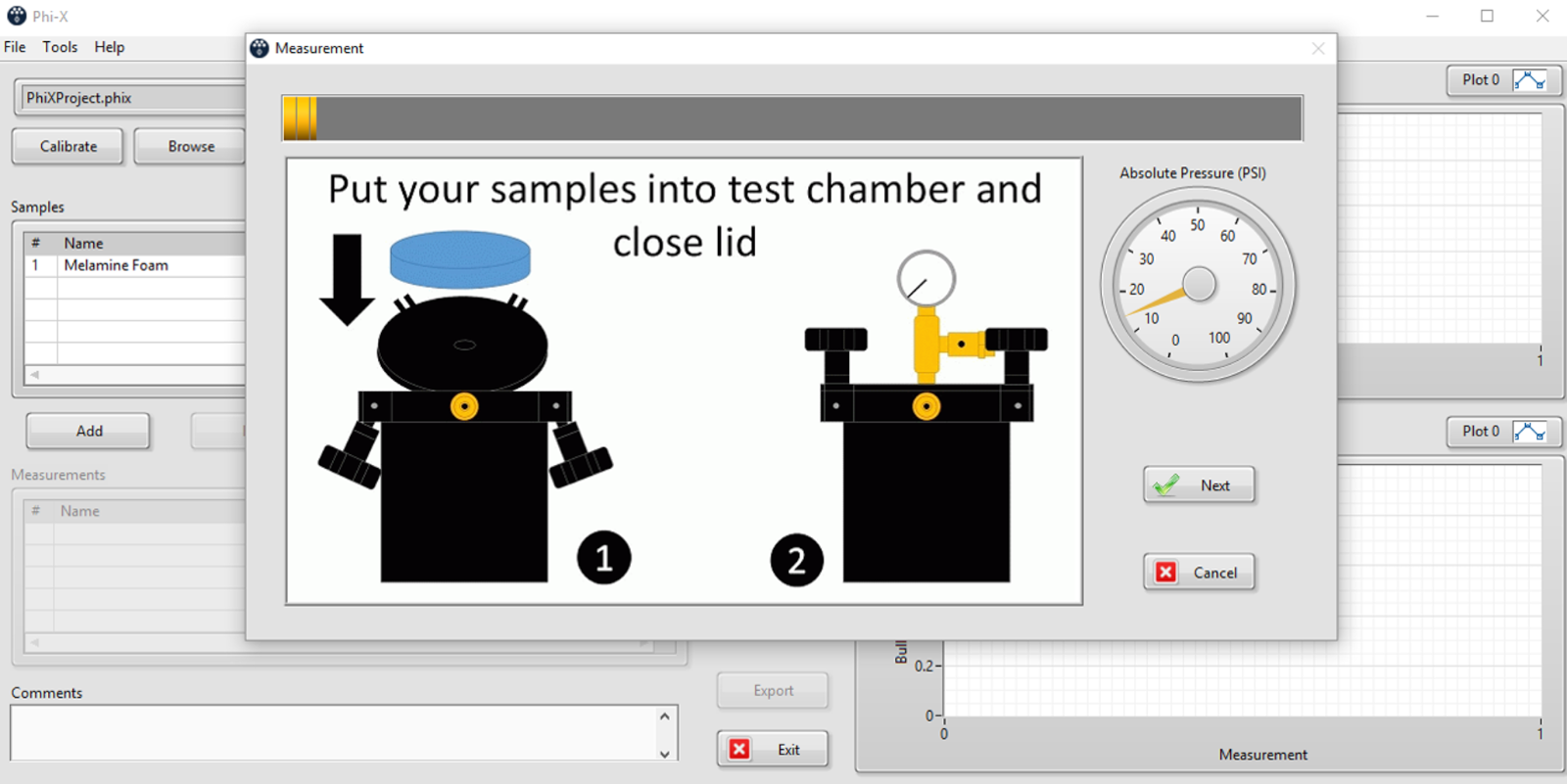

PHI-X
Measuring porosity involves several steps, and PHI-X controls each of them, guiding you through the experiment for precise, repeatable results in a smooth workflow, clear enough to be productive from the first use. The software computes your sample’s volume for you and lets you combine samples, and it handles measurement with either argon gas, more precise but less convenient, or compressed air, less precise but more convenient, so you can match the method to your needs. A one-click Excel report turns the results into clear, professional documentation.
Coming soon.
Automotive industry
Verify the open porosity and density of foams and absorbers used in vehicle noise control, on the line or on incoming supply.
Aerospace industry
Characterize lightweight porous absorbers through the porosity and density that underpin their acoustic performance.
Material manufacturers
Test porosity and density at the end of the production line to guarantee both material performance and process consistency.
Building
Qualify porous insulation and soundproofing materials by the properties that drive their sound absorption.
Laboratories
Measure open porosity from 0 to 99.9 % and true bulk density with a simple, software-guided procedure.
Universities
Teach and research the properties of porous media, starting from parameters that feed every sound absorption model.
Optional accessories, available with your porosity and density meter or separately.
Circular knife
The circular knife lets you cut clean, repeatable sample geometries from porous materials, so each specimen fits the tube precisely and edge effects stay minimal. Consistent sample preparation is one of the simplest ways to improve measurement repeatability.
Material slicer
The material slicer holds a porous sample firmly in place while you cut it to thickness, giving you flat, parallel faces and a controlled height. It removes much of the guesswork from preparing soft or compressible materials that are otherwise hard to slice evenly.
